Offshore Carousels for Sale March 2026!

Key Performance and Technical Specifications

• Maximum Product Weight: 1600 tonnes.
• Carousel Dimensions:
  • Outside wall diameter: 16,984 mm (16.984 m).
  • Inside wall diameter: 16,364 mm (16.364 m).
  • Height from tank top of base: 1075 mm (1.075 m).
  • Outside wall height: 6700 mm (6.7 m).
  • Center core diameter: 4000 mm (4 m) or 6000 mm (6 m), configurable.
  • Center core height: 6700 mm (6.7 m).
• Partition Provision: 24 x M39 holes in base for an 8 m diameter partition, positioned in pairs on 150 mm centers on a 3925 mm PCR.
• Load Intensity (Evenly Distributed):
  • 8.74 T/m² with 6 m core fitted.
  • 8.09 T/m² with 4 m core fitted.
• Rotational Speed: 0 to 1.35 rpm (infinitely variable).
• Linear Speed (Maximum):
  • At inner core diameter (4 m): 1000 meters/hour.
  • At middle diameter (6 m): 1500 meters/hour.
  • At outer diameter (16.364 m): 4090 meters/hour.
• Drives: 4 units (25% redundancy).
• Electric Motor:
  • Power: 60 kW per motor.
  • Speed: 2385 rpm maximum.
• Gearbox: Bevel-Helical type.
• Drive Ratios:
  • Gearbox: 80.3:1.
  • Chain drive: 22:1 (264-link chain & 12-tooth sprocket).
• Brake Capacity: 400 Nm (260 Nm with springs removed).
• IP Ratings:
  • Electric motors: IP56.
  • Electrical cubicles: IP44.
• Max. Pillar Working Load onto Aft Hub: 750 tonnes (downwards).
• Electrical Supplies: Refer to customer interface documentation.

Spooling System Specifications

• Rotation Direction for Loading:
  • Tank 1: Clockwise.
  • Tank 2: Anti-clockwise.
• Pipe Diameters:
  • Maximum outside: 600 mm.
  • Minimum outside: 100 mm.
• Maximum Fill Height in Carousel: 6500 mm (6.5 m).
• Spooling Power Pack:
  • Hydraulic pressure: 210 bar (max).
  • Cooling system: Air blast cooler.
  • Maximum air temperature: 40 °C.
  • Power rating: 30 kW.
  • IP rating for electric motor: IP56.
  • IP rating for electrical starter: IP44.

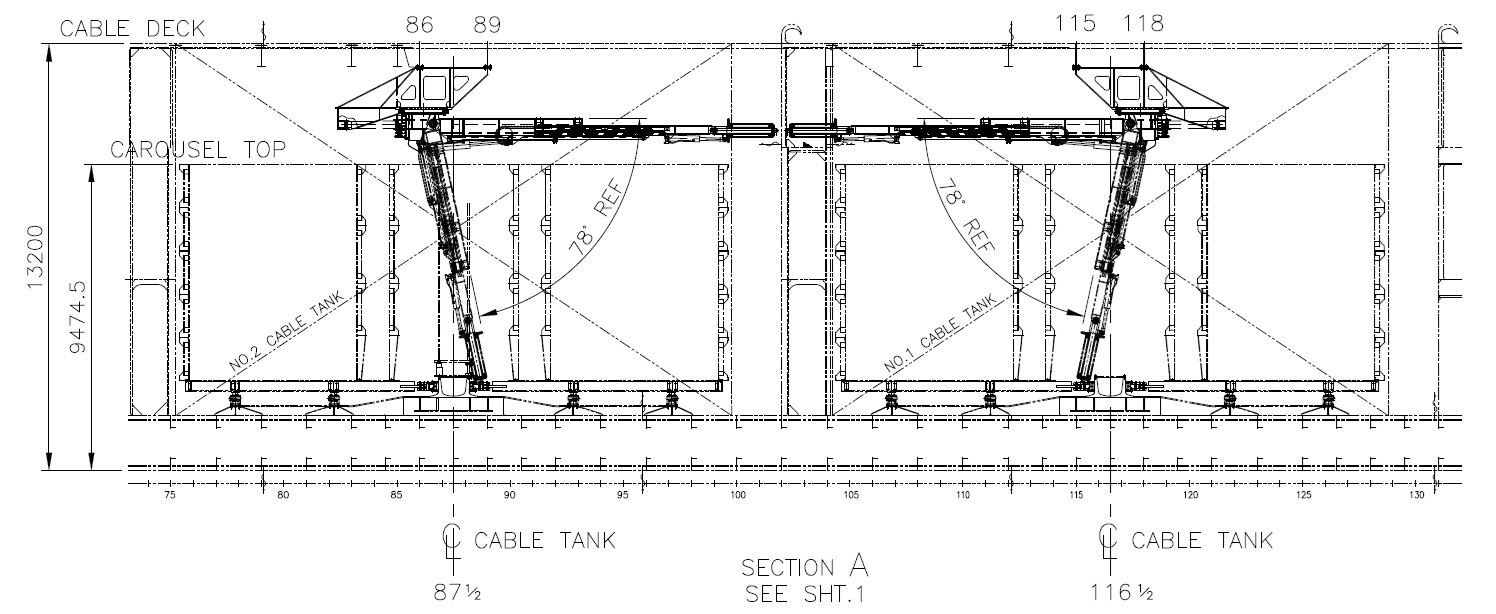

• Arm Assembly:
  • Type: Telescopic arm with articulating front roller.
  • Kingpost slew ring size: Φ1530 x Φ1178 x 130 mm.
  • Maximum outreach from kingpost centerline: 10,845 mm (10.845 m).
  • Minimum outreach from kingpost centerline: 6,580 mm (6.58 m; arms 2 & 3 retracted).
  • Spooling slewing angle: ±34° minimum.
  • Vertical articulation (main arm): 8° up, 70° down (approx.).
  • Vertical articulation (roller arm): 97° approx. relative to main arm.
  • Roller size: Φ420 x 1300 mm.
  • Roller coating: 10 mm natural rubber.
  • Inner flange size: Φ750 mm.
  • Flange material: Thermoplastic.
  • Forces (at full outreach, approx.):
    • Maximum upwards: 5.0 tonnes.
    • Maximum downwards: 2.0 tonnes.
    • Maximum sideways towards center: 6.0 tonnes.
    • Maximum sideways towards outer diameter: 4.0 tonnes.

Storage Volume and Load Distribution Calculations

The carousels provide annular storage space between the configurable center core and the inner wall (diameter 16.364 m, radius 8.182 m). Maximum fill height is 6.5 m. Calculated storage volumes (excluding packing efficiency for coiled products) and load intensities for the 1600-tonne capacity are:

• 4 m Core (inner radius 2 m): Storage area ≈ 197.75 m², volume ≈ 1285 m³, load intensity ≈ 8.09 T/m².
• 6 m Core (inner radius 3 m): Storage area ≈ 182.04 m², volume ≈ 1183 m³, load intensity ≈ 8.79 T/m².

Packing List (Lifting & Rigging - Carousel & Spooling Equipment per Carousel)

Total approximate weight: 271 tonnes
