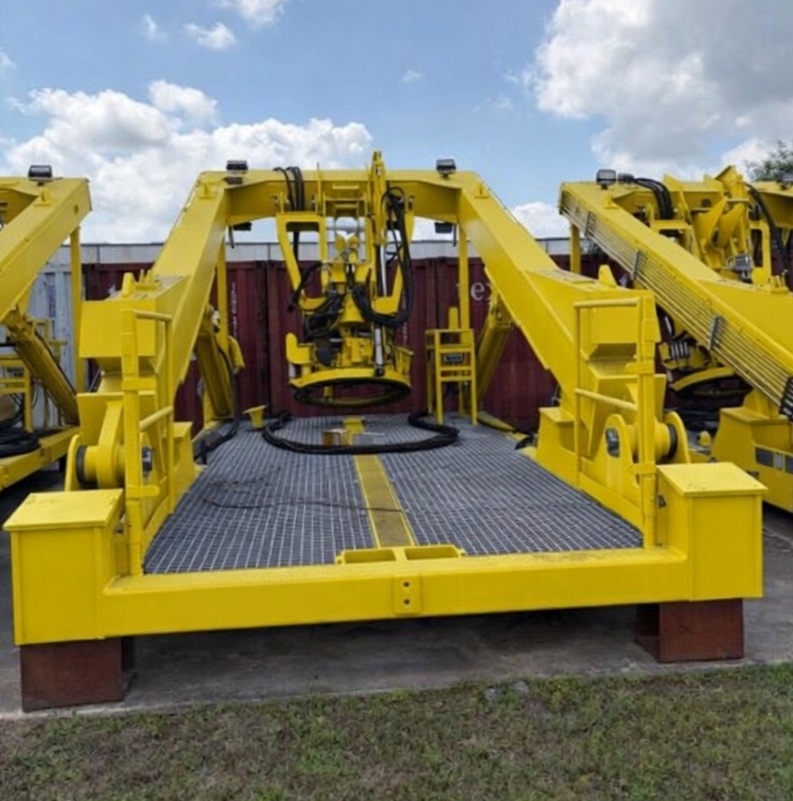

A-FRAMES for ROV
PROMPT AVAILABLE
Suitable ROV Types
These A-Frames are suitable for free-flying WROV, light WROV with cage-type TMS,
and free-swimming Remotely Operated Vehicles (ROV).
Operational Dimensions & Weight
Length:6,933 mm
Width:3,394 mm
Docking Head Sheave Tread Diameter:1,219 mm
Weight:13,200 kg
Overboard Reach:3,180 mm
System Rating
SWL Luffing:5,600 kg
SWL (Fully Deployed on Stops):7,000 kg
Fall Arrestor Pad Eye (SWL):2,268 kg
Certification
DnV Certification for lift to DnV’s Standard No. 2.7-3, January 2011 Type B Structure
* VERY Attractive Price Tag...!
