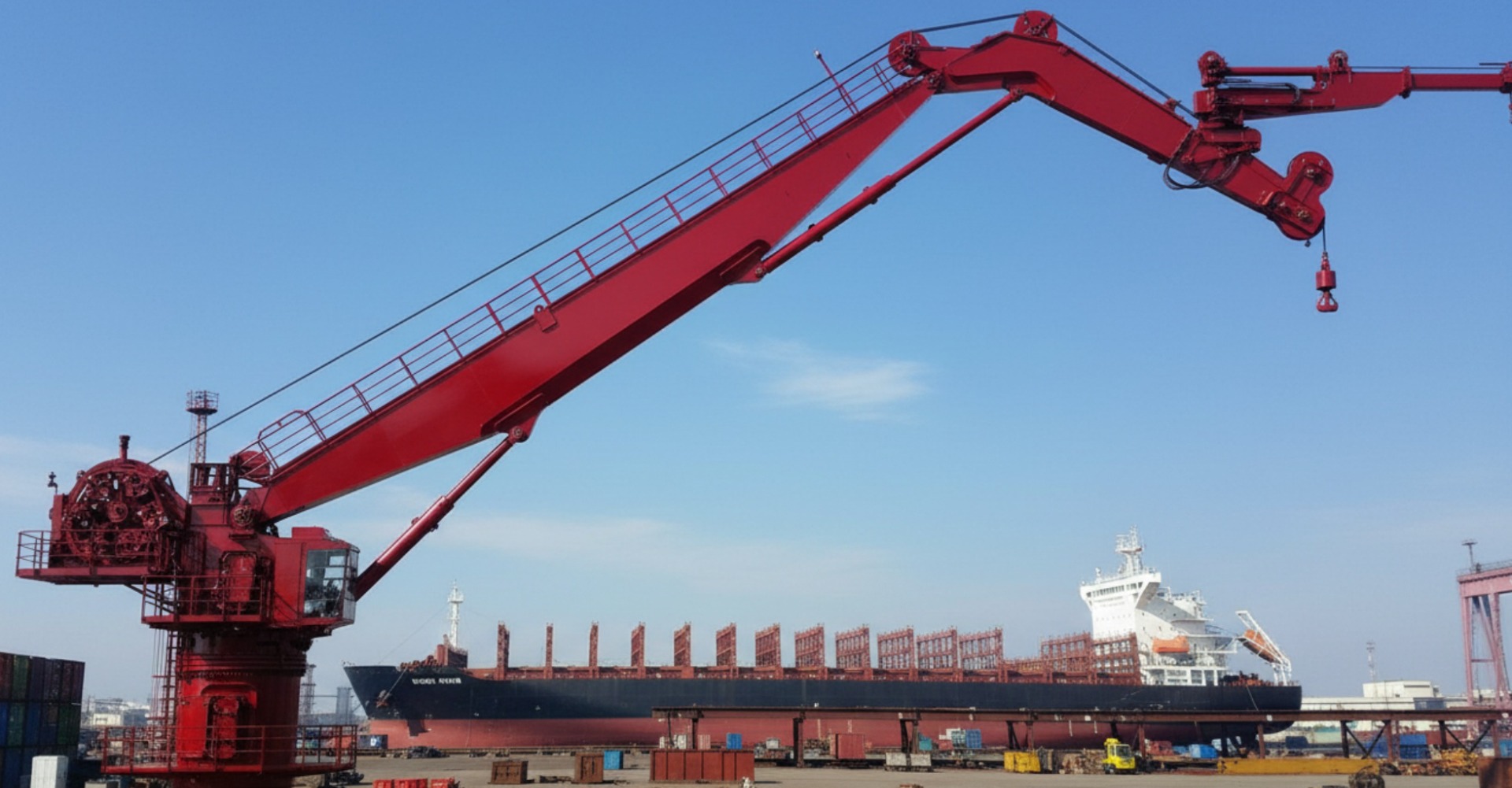

75-ton Active Heave Compensated (AHC)
Knuckle Boom Subsea Crane
Newbuild – Attractive fast-track delivery time
Specifications
| Item | Specification |
|---|---|
| OEM | – |
| Year Built | Newbuild, Attractive fast-track delivery time |
| SWL | 75 t (single fall) |
| Max Depth (AHC) | 2,200 m |
| Max Radius (main hook) | 20 t – 30 m / 70 t – 12 m |
| AHC Performance (0–50% load) | 120 m/min (2 m/s) compensation |
| AHC Performance (0–100% load) | 60 m/min (1 m/s) compensation |
| Main hoist speeds (non-AHC) | 0–90 m/min (0–62.5 t) / 0–45 m/min (62.5–75 t) |
| Slewing | Unlimited 360°, 0–1.1 rpm |
| Power | 3 × 400 kW main + 60 kW emergency |
| Total weight (incl. pedestal) | ~195 tonnes |
| Classification | Built to DNV / ABS / API 2C |
| Service Hubs | Global |
Fast-track delivery on firm interest
Full technical package & commercial proposal available immediately
